Cnc Carbide End Mill 2F Flat Endmill HRC45 Milling Cutter CVD Coated 1.5mm 6mm

Quick Detail:

• Suitable for cutting carbon steel, alloy steel and steel parts with HRC below 45 °;
• Through characteristic design, the cutting process is lighter, the tool rigidity is better, and the service life is longer;
• It can realize rough machining with high metal removal amount and finish machining with high surface quality;
• The product can be as small as 0.1mm, even the smallest part of the part can be easily processed;
• The coating type for steel parts below HRC45 ° shall be adopted.

Description:

1. Good heat resistance, its heat resistance temperature can reach 1100 ℃, and the maximum processing hardness can reach 52HRC. After processing, the shape accuracy and surface roughness of the processed workpiece are good; Therefore, the carbide end mill can avoid the phenomena of accretion, chipping, wear, tool breakage, etc. during the processing and production process, extend its service life, and effectively improve the product quality of the processed workpiece.

2. The number of commonly used edges is 2F, 3F, 4F, 5F, 6F, etc. The more the number of edges, the better the effect after finishing.

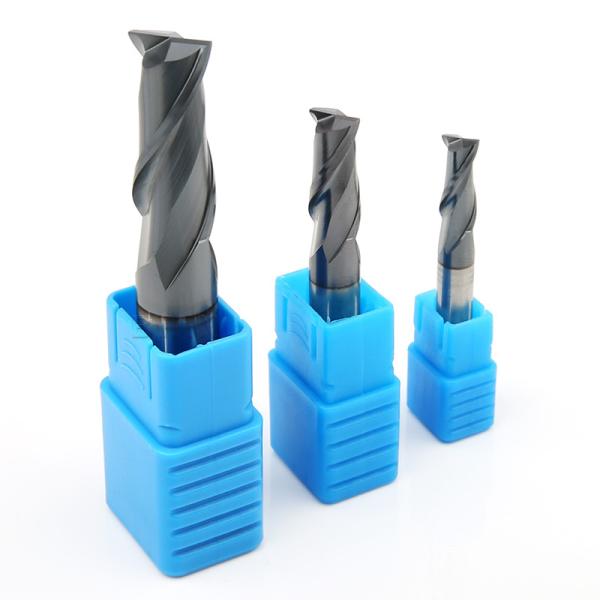

3. The outline of the end milling cutter is shown in the figure. The outer edge and bottom surface of the carbide end mill are provided with milling teeth to form a cutting edge, which is used to mill the vertical and horizontal surfaces of the workpiece.

4. In general, the carbide end milling cutter is very suitable for 2D shaped workpieces.

Milling parameters:

				Sloting
				Vc (m/min)	fz(mm/Tooth)
					Diameter
					2	4	6	8	10	12	16	20
				112	0.01	0.018	0.026	0.034	0.041	0.048	0.06	0.069
				92	0.01	0.017	0.025	0.032	0.038	0.045	0.056	0.065
				100	0.01	0.018	0.026	0.034	0.041	0.048	0.06	0.069
				72	0.009	0.015	0.022	0.028	0.034	0.04	0.05	0.058
				64	0.01	0.018	0.025	0.032	0.039	0.045	0.057	0.066
				56	0.009	0.016	0.023	0.029	0.036	0.041	0.052	0.06

				Roughing
				Vc (m/min)	fz(mm/Tooth)
					Diameter
					2	4	6	8	10	12	16	20
				228	0.018	0.031	0.045	0.057	0.070	0.081	0.101	0.118
				208	0.017	0.029	0.042	0.054	0.065	0.071	0.095	0.11
				184	0.018	0.031	0.045	0.057	0.070	0.081	0.101	0.118
				144	0.015	0.026	0.037	0.048	0.058	0.068	0.085	0.098
				132	0.017	0.03	0.042	0.054	0.066	0.077	0.096	0.112
				112	0.015	0.027	0.039	0.05	0.060	0.07	0.088	0.102

	Finish
	Vc m/min	fz(mm/Tooth)
		Diameter
		2	4	6	8	10	12	14	16	18	20
	332	0.028	0.05	0.07	0.091	0.11	0.128	0.144	0.16	0.173	0.186
	272	0.026	0.046	0.066	0.085	0.103	0.12	0.135	0.15	0.162	0.173
	304	0.028	0.05	0.07	0.091	0.11	0.128	0.144	0.16	0.173	0.186
	212	0.023	0.041	0.059	0.076	0.092	0.107	0.121	0.134	0.145	0.155
	196	0.027	0.047	0.067	0.086	0.104	0.122	0.137	0.152	0.165	0.177
	168	0.024	0.043	0.061	0.079	0.095	0.111	0.125	0.139	0.150	0.161

Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
