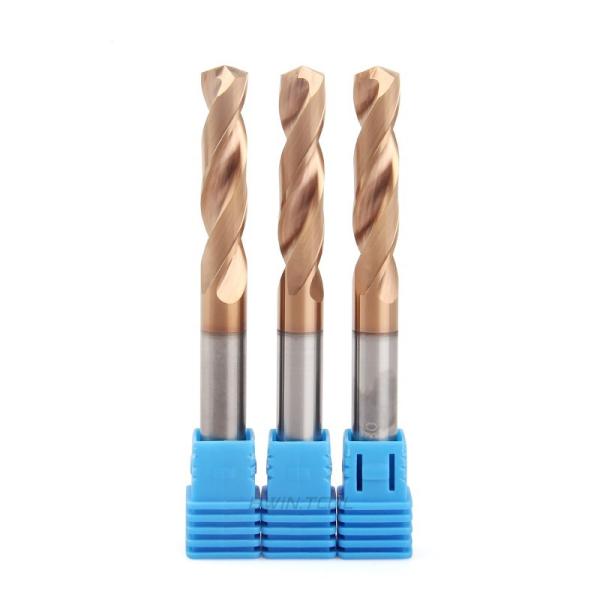

    3D Steel Tungsten Tipped Drill Bit Inner Cooling Solid Carbide Twist Drill

    Hss Twist 4341 Hss Tungsten Carbide Drill Bit Imperial Small Handle Fast Drilling Flute

    Tungsten Carbide Drill Bits Solid 3D Steel Twist Inner Cooling Coolant Hole

    Quick Detail:

    • German technology
    • International standard
    • Nano coating
    • Strong and wear-resistant
    • Strong seismic resistance

    Description:

    • The fine particle tungsten steel base material is adopted, which has high hardness, strength and wear resistance to ensure the stability of each tungsten carbide drill bits ; The edge is covered with nano coating, which can directly rough process to fine process the 55 degree heat treatment material, reduce the number of tool changes, improve the machine tool productivity, and explain the production aging; CNC fine grinding of double rear corners effectively improves chip removal performance, making cutting sharper and drilling faster; Universal round handle chamfer design, wide application range, convenient and durable.

    Specifications:​

    Brand BWIN
    Model Tungsten Carbide Drill Bits For Machine Tools
    Workpiece Cast iron/Steel /Stainless steel/copper/Aluminum
    Type Nail Tungsten Carbide Drill Bit
    Material Tungsten Carbide Drill Bits
    Processing Type Medium Cutting
    Feature German technology
    International standard
    Nano coating
    Strong and wear-resistant

    Strong seismic resistance

    Standard ISO
    Quantity 1pcs/box
    Surface Finish Black Oxide (Black White, Gray Bright)
    Package Plastic Box
    Customized Support OEM, ODM

    Lead Time:

    antity(pieces) 1 - 3000 >3000
    Lead time (days) 7 To be negotiated

    Parameter:

    3D/5D External Cooling Cutting Parameters

    Processed
    materials

    Mild steel
    HB≤180
    Prehardened steel
    -40HRC
    stainless steel cast iron aluminium alloy

    heat-resisting

    alloy

    vc/(m/min) 60~120m/min 40~70m/min 25~40m/min 60~120m/min 60~14m/min 15~25m/min
    D(mm) N
    (min)
    F
    (mm/r)
    N
    (min)
    F
    (mm/r)
    N
    (min)
    F
    (mm/r)
    N
    (min)
    F
    (mm/r)
    N
    (min)
    F
    (mm/r)
    N
    (min)
    F
    (mm/r)
    2 14000 0.06~
    0.08
    9500 0.06~
    0.08
    5500 0.02~
    0.05
    14000 0.06~
    0.08
    16000 0.06~
    0.08
    3200 0.02~
    0.04
    3 9500 0.09~
    0.12
    6300

    0.09~

    0.12

    3700 0.03~
    0.07
    9500 0.09~
    0.12
    10600 0.09~
    0.12
    1200 0.03~
    0.06
    4 7000 0.10~
    0.15
    4700 0.10~
    0.15
    2700 0.04~
    0.08
    7000 0.10~
    0.15
    8000 0.10~
    0.15
    1600

    0.04~

    0.07

    5 5700 0.12~
    0.18
    3800 0.12~
    0.18
    2200 0.05~
    0.10
    5700 0.12~
    0.18
    6400 0.12~
    0.18
    1250 0.05~
    0.09
    6 4700 0.14~
    0.20
    3100 0.14~
    0.20
    1850 0.06~
    0.12
    4700 0.14~
    0.20
    5300 0.14~
    0.20
    1050 0.06~
    0.11
    8 3600 0.16~
    0.24
    2400 0.16~
    0.24
    1400 0.08~
    0.16
    3600 0.16~
    0.24
    4000 0.16~
    0.24
    800 0.08~
    0.14
    10 2800 0.18~
    0.27
    1900 0.18~
    0.27
    1100 0.18~
    0.27
    2800 0.27~
    0.18
    3200 0.18~
    0.27
    600 0.10~
    0.16
    12 2400 0.20~
    0.3
    1600 0.20~
    0.3
    930 0.12~
    0.20
    2400 0.20~
    0.3
    2700 0.20~
    0.3
    500 0.12~
    0.18
    14 2100 0.22~
    0.35
    1400 0.22~
    0.35
    800 0.13~
    0.22
    2100 0.22~
    0.35
    2300 0.22~
    0.35
    450 0.13~
    0.2
    16 1800 0.25~
    0.36
    1200 0.25~
    0.36
    700 0.25~
    0.36
    1800 0.25~
    0.36
    2000 0.25~
    0.36
    400 0.14~
    0.23
    18 1600 0.28~
    0.38
    1100 0.28~
    0.38
    620 0.28~
    0.38
    1600 0.28~
    0.38
    1800 0.28~
    0.38
    350 0.15~
    0.25
    20 1400 0.30~
    0.4
    950 0.30~
    0.4
    550 0.30~
    0.4
    1400 0.30~
    0.4
    1600 0.30~
    0.4
    320 0.16~
    0.28

    3D/5D internal cooling cutting parameter

    Processed

    materials

    Mild steel

    HB≤180

    Prehardened steel

    -40HRC

    stainless steel

    cast iron

    aluminium alloy

    heat-resisting

    alloy

    vc/(m/min)

    60~120m/min

    40~70m/min

    25~40m/min

    60~120m/min

    60~14m/min

    15~25m/min

    D(mm)

    N

    (min)

    F

    (mm/r)

    N

    (min)

    F

    (mm/r)

    N

    (min)

    F

    (mm/r)

    N

    (min)

    F

    (mm/r)

    N

    (min)

    F

    (mm/r)

    N

    (min)

    F

    (mm/r)

    3

    12700

    0.09~

    0.12

    7400

    0.09~

    0.12

    6300

    0.03~

    0.07

    12700

    0.09~

    0.12

    15000

    0.09~

    0.12

    1200

    0.03~

    0.06

    4

    9600

    0.10~

    0.15

    5600

    0.10~

    0.15

    4700

    0.04~

    0.08

    9600

    0.10~

    0.15

    11000

    0.10~

    0.15

    1600

    0.04~

    0.07

    5

    7600

    0.12~

    0.18

    4500

    0.12~

    0.18

    3800

    0.05~

    0.10

    7600

    0.12~

    0.18

    9000

    0.12~

    0.18

    1250

    0.05~

    0.09

    6

    6400

    0.14~

    0.20

    3700

    0.14~

    0.20

    3200

    0.06~

    0.12

    6400

    0.14~

    0.20

    7400

    0.14~

    0.20

    1050

    0.06~

    0.11

    8

    4800

    0.16~

    0.24

    2800

    0.16~

    0.24

    2400

    0.08~

    0.16

    4800

    0.16~

    0.24

    5600

    0.16~

    0.24

    800

    0.08~

    0.14

    10

    3800

    0.18~

    0.27

    2200

    0.18~

    0.27

    1900

    0.18~

    0.27

    3800

    0.27~

    0.18

    4500

    0.18~

    0.27

    600

    0.10~

    0.16

    12

    3200

    0.20~

    0.3

    1900

    0.20~

    0.3

    1600

    0.12~

    0.20

    3200

    0.20~

    0.3

    3700

    0.20~

    0.3

    500

    0.12~

    0.18

    14

    2700

    0.22~

    0.35

    1600

    0.22~

    0.35

    1350

    0.13~

    0.22

    2700

    0.22~

    0.35

    3200

    0.22~

    0.35

    450

    0.13~

    0.2

    16

    2400

    0.25~

    0.36

    1400

    0.25~

    0.36

    1200

    0.14~

    0.25

    2400

    0.25~

    0.36

    2800

    0.25~

    0.36

    400

    0.14~

    0.23

    18

    2100

    0.28~

    0.38

    1200

    0.28~

    0.38

    1050

    0.15~

    0.28

    2100

    0.28~

    0.38

    2500

    0.28~

    0.38

    350

    0.15~

    0.25

    20

    1900

    0.30~

    0.4

    1100

    0.30~

    0.4

    950

    0.16~

    0.30

    1900

    0.30~

    0.4

    2300

    0.30~

    0.4

    320

    0.16~

    0.28

    • When using this tungsten carbide drill bits for the first time, try to cut at 90% of the cutting speed or 85% of the feed speed according to the above data, and then increase the cutting speed and feed rate one by one after the cutting condition is stable
    • This standard cutting condition is applicable to water-soluble cutting fluid
    • When installing the tool, please use a clean chuck with defects removed, and control the radial runout of the drill bit within 0.02mm
    • The cutting conditions in this table are applicable to situations with hole depth below 5D

    Notice:

    • When drilling steel parts, please ensure sufficient cooling capacity and use metal cutting fluid.
    • Good drill pipe rigidity and guide rail clearance can improve drilling accuracy and bit life.
    • Please ensure the flatness and cleanness between the magnetic base and the workpiece.
    • When drilling thin plates, reinforce the workpieces. When drilling large workpieces, ensure that the workpieces are stable.
    • At the beginning and end of drilling, the feed rate shall be reduced by 1/3.
    • For materials with large amount of fine powder during drilling, such as cast iron, cast copper, etc., compressed air can be used instead of coolant to help remove chips.
    • Please remove the iron scraps wrapped on the drill body in time to ensure smooth chip removal.

    Applications:

    Our tungsten carbide drill bits could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

    3D Steel Tungsten Tipped Drill Bit Inner Cooling Solid Carbide Twist Drill

    FAQ

    Q1. Excessive aperture

    Reasons: 1. The cemented carbide drill is not well clamped, and the runout of the spindle itself is too large

    2. Asymmetrical sharp angle, excessive blade height difference, eccentric cross blade

    Solution: 1. select high-quality tool handle and fixture, calibrate the spindle, and carefully measure and adjust each time the drill is clamped

    2. Re sharpen and correct, and check the accuracy after sharpening

    Q2. Poor consistency of aperture

    Reasons: 1. Asymmetrical sharp angle, too large difference in blade height, eccentric transverse edge, and too much wear on edge surface

    2. The cemented carbide drill bit is not properly clamped, the runout of the spindle itself is too large, and the workpiece is not firmly clamped

    3. Excessive feed speed

    4. Insufficient cutting fluid supply

    Solution: 1. Re sharpen the drill and check the accuracy after sharpening

    2. Select a good tool handle and fixture, calibrate the spindle, and carefully measure and adjust each time the drill is clamped

    3. Reduce the feed speed of cemented carbide drill

    4. Change the cutting fluid supply method and increase the flow).

    Q3. Poor hole straightness and verticality

    Reasons: 1. Excessive tool wear

    2. Asymmetrical sharp angle, excessive blade height difference, eccentric cross blade

    3. Insufficient rigidity

    4. Uneven cutting plane

    Solution: 1. Re sharpen

    2. Re sharpen and correct, and check the accuracy after sharpening

    3. Improve the rigidity of machine tools, jigs, cemented carbide drills, etc

    4. Check the levelness of the pre machined surface

    Q4. Poor hole location and poor consistency of center distance

    Reasons: 1. The drill bit is not properly clamped, and the spindle itself has excessive runout

    2. Deviation during cutting

    3. Machine tool accuracy loss

    4. The centering effect of cemented carbide bit is poor, and the cross edge is eccentric

    Solution: 1. select a good tool handle and fixture, calibrate the spindle, and carefully measure and adjust each time the drill is clamped

    2. Improve the rigidity of the cutter and machine tool, and the rigidity of the workpiece and fixture. Use the drill type with good cutting performance, and check the levelness of the cutting surface

    3. Check the accuracy of the machine tool

    4. Re sharpen the carbide bit, and check the accuracy after sharpening
