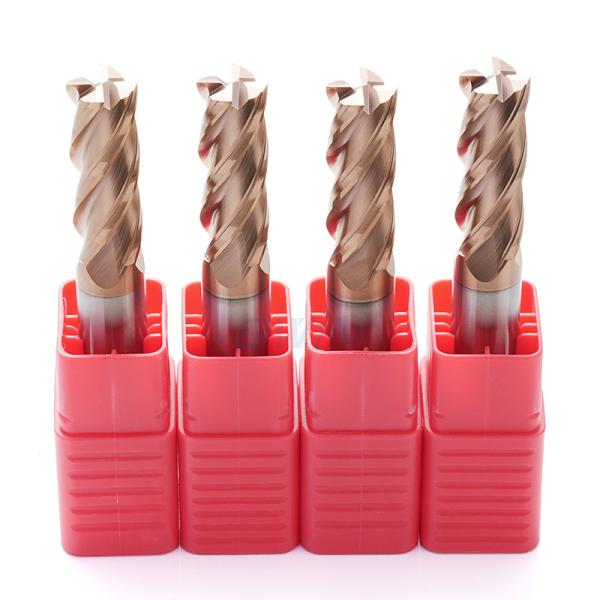

Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating

    Buy cheap Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating from wholesalers

    Buy cheap Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating from wholesalers
    • Buy cheap Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating from wholesalers
    • Buy cheap Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating from wholesalers

    Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating

    Ask Lasest Price
    Brand Name : BWIN
    Model Number : Standard size
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1-500pcs 7days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating

    Features:

    • Square end mills, or flat end mills, are general-purpose mills that generate flat-surfaced cuts with perfect 90° corners in the workpiece. Square end mills are used at the roughing stage as well as the finishing stage. Side milling, face milling, shoulder milling, and slotting operations are all possible with a square end mill. An ample selection of end mill materials and coatings allows for cutting in a variety of workpiece materials at a range of cutting speeds.

    1. High quality carbide rod:

    All cutting materials are from international famous brands, high hardness, long tool life.

    Grade
    HRC45
    HRC55
    HRC60
    HRC65
    MateiralYG10XZK30UFZK40SFGU25UF
    DetailsGrain size 0.8um
    Co: 10%
    Flexural strength
    3320N/mm2
    Grain size 0.7um
    Co: 10%
    Flexural strength 4000N/mm2
    Grain size 0.5um
    Co: 12%
    Flexural strength
    4300N/mm2
    Grain size 0.4um
    Co: 10%
    Flexural strength 4300N/mm2

    2. Super coating:

    Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.

    ItemColorHardness(HV)Thicknes(UM)Oxidation Temp.(℃)Friction Coeffient
    AlTiNBlack33002.5~39000.3
    TiAlNViolet28002.5~38000.3
    TiSiNBronze3600310000.45
    AlTiSiNBlue4000412000.4
    NanoBlue42(GPA)312000.4

    Applications of carbide end mill

    Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, stainless steel, quenched and tempered steel, copper, aluminum, plastic, wood, etc
